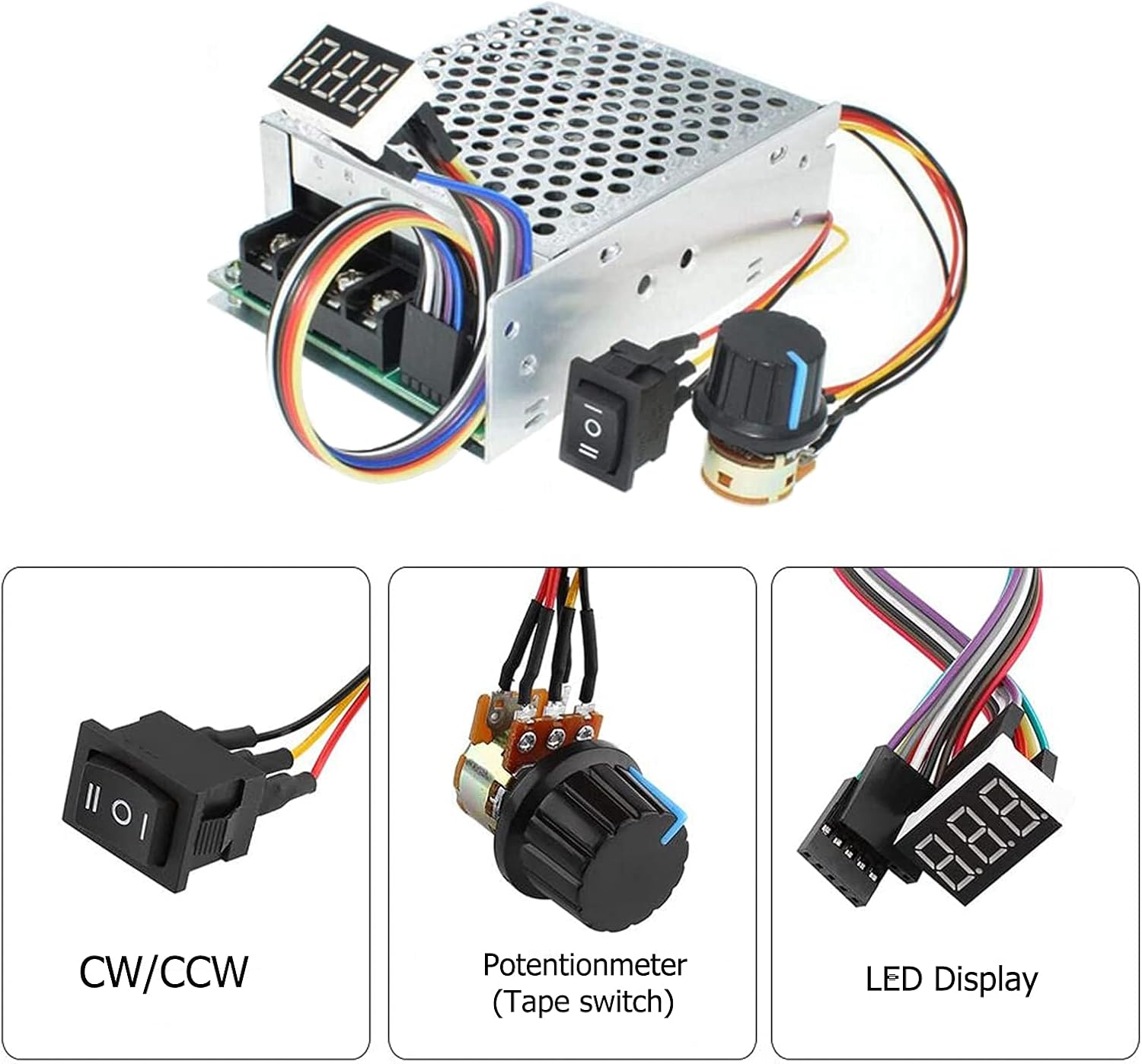

DC Motor Speed Controller, PWM 10-55 V 12 V 24 V 36 V 48 V 60 A, Stepless DC Motor Speed Controller with switch function and LED Display

Technical specifications: Input voltage: DC10-55 V (equal to the rated voltage of the motor) Output voltage: linear under load Current: 60 A Continuous current: 40 A (long time with attention to heat dissipation or reduce the current use) Type of speed regulation: current regulation Speed regulation mode: potentiometer (linear) Support motor: DC brush motor Forward and reverse: support Control frequency: 15 KHZ Wiring type: terminal Knob specification: 100 K (with switch) Wiring type: Barrier type terminals Specifications of PWM DC motor speed controller: Main board size: 3.93 in x 2.99 in x 1.10 in/100 mm x 76mm x 28mm Shell size: 4.33 in x 3.07 in x 1.49 in/110 mm x 78 mm x 38 mm Product net weight: 249 g Note: Ensure that the positive and negative connections are correct before powering on, do not touch the heat sink with the wiring, touch may burn the circuit board

• Material: Stepless DC motor speed controller made of electronic components, The enclosure is an aluminum enclosure,which is strong and not easy to damage
• Features: The aluminum housing has many round holes on the sides and top to help dissipate heat from DC motor speed controller
• Easy to use: Motor governor comes with a switch function and potentiometer knob to smoothly adjust motor speed from 0% ~ 100%.and with Digit Display, which is highly adaptable and makes it more convenient to change the direction of the motor
• Note: This is not a power supply module. The speed can only be adjusted when the motor is connected.Not connected to the motor, the multimeter output is no change
• Package contains: 1 * Stepless DC Motor Speed Controller
