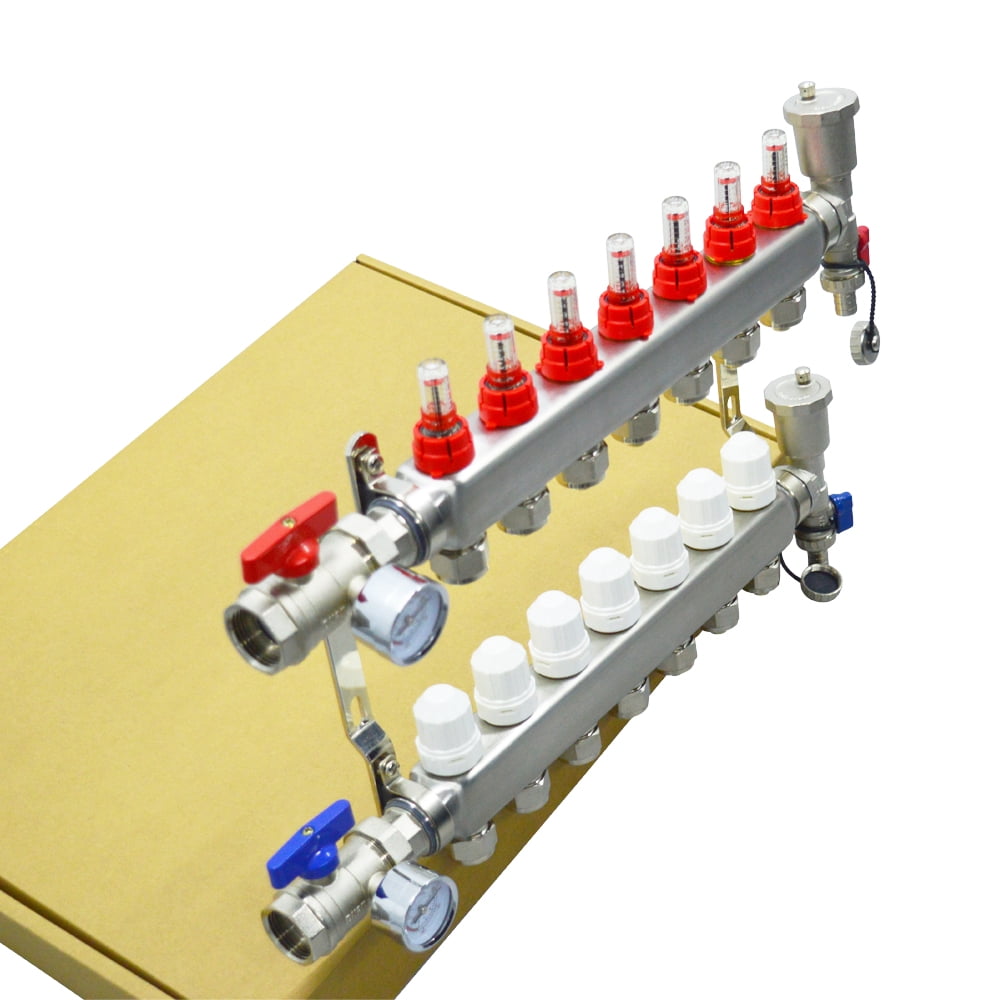

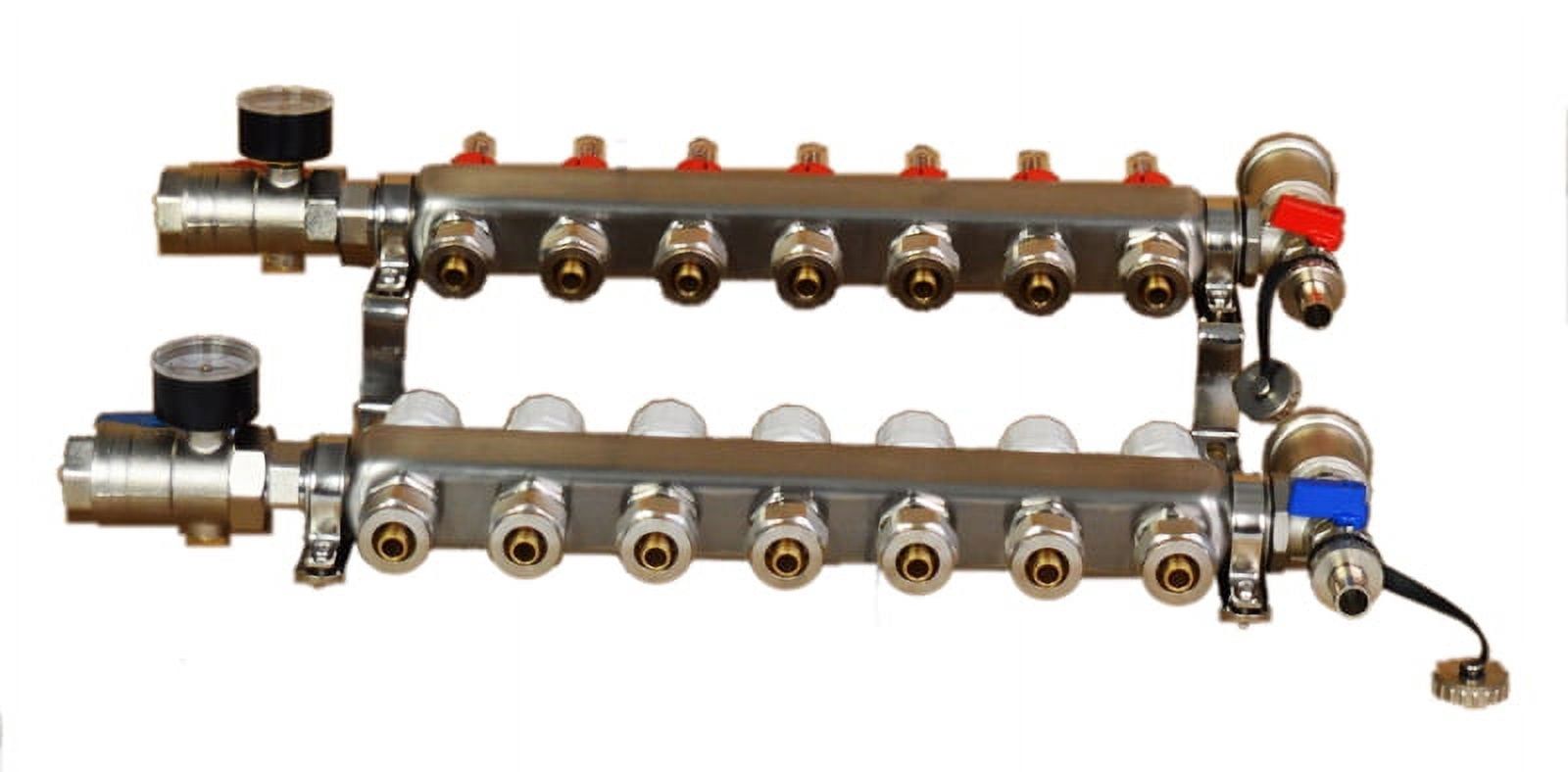

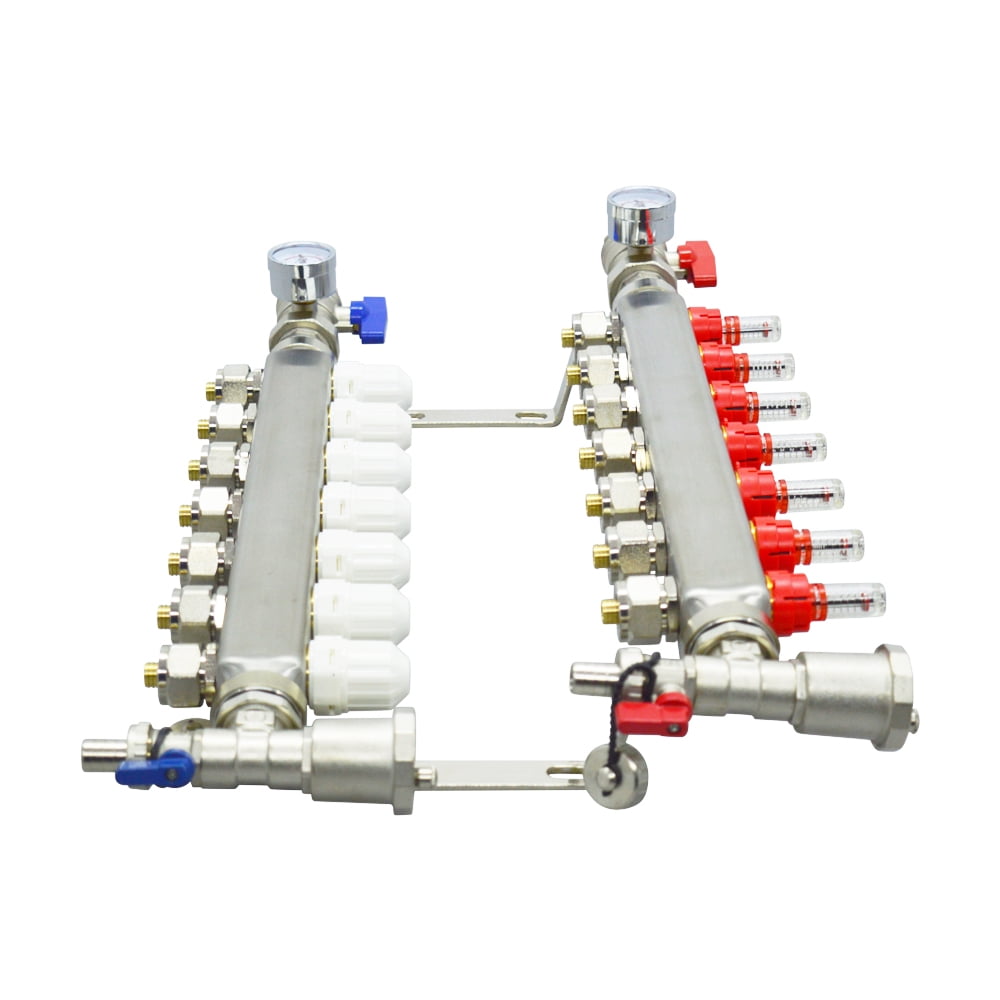

EQCOTWEA 7-Branch PEX Radiant Floor Heating Manifold Set Floor Heating Water Distributor Stainless Steel

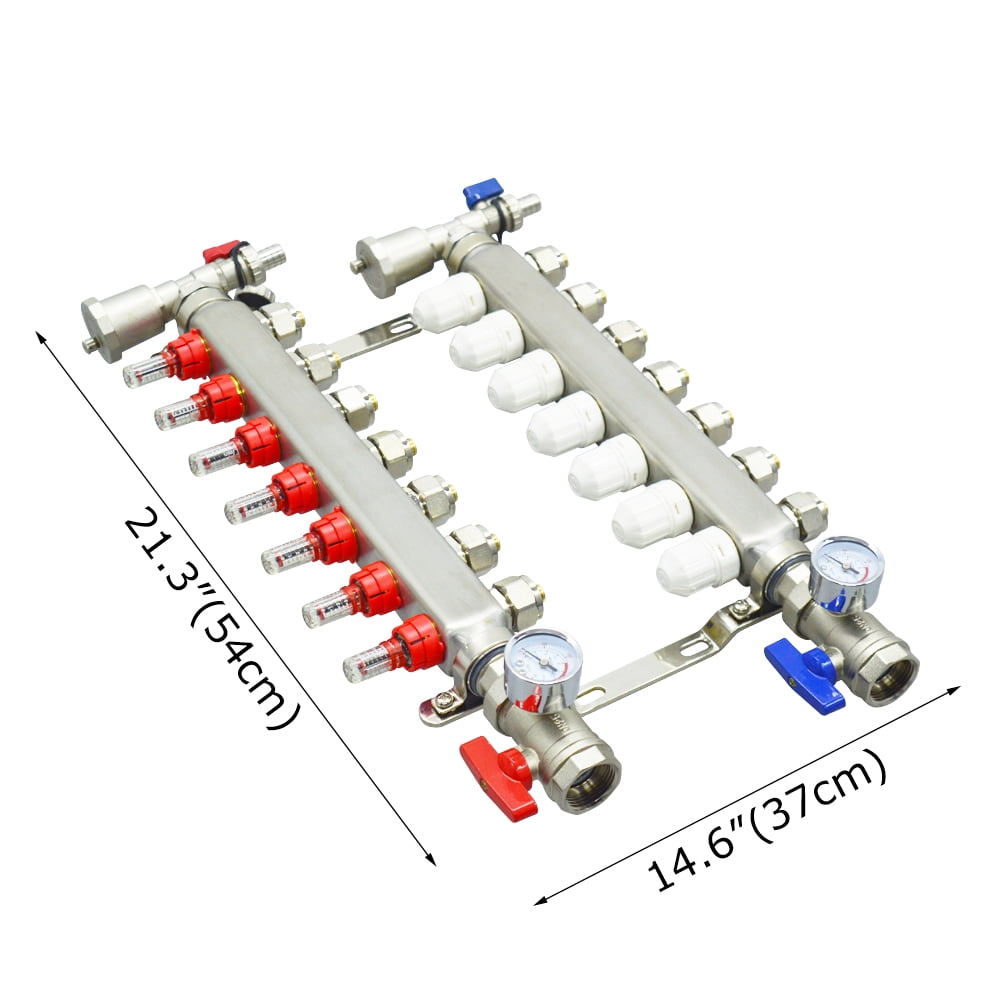

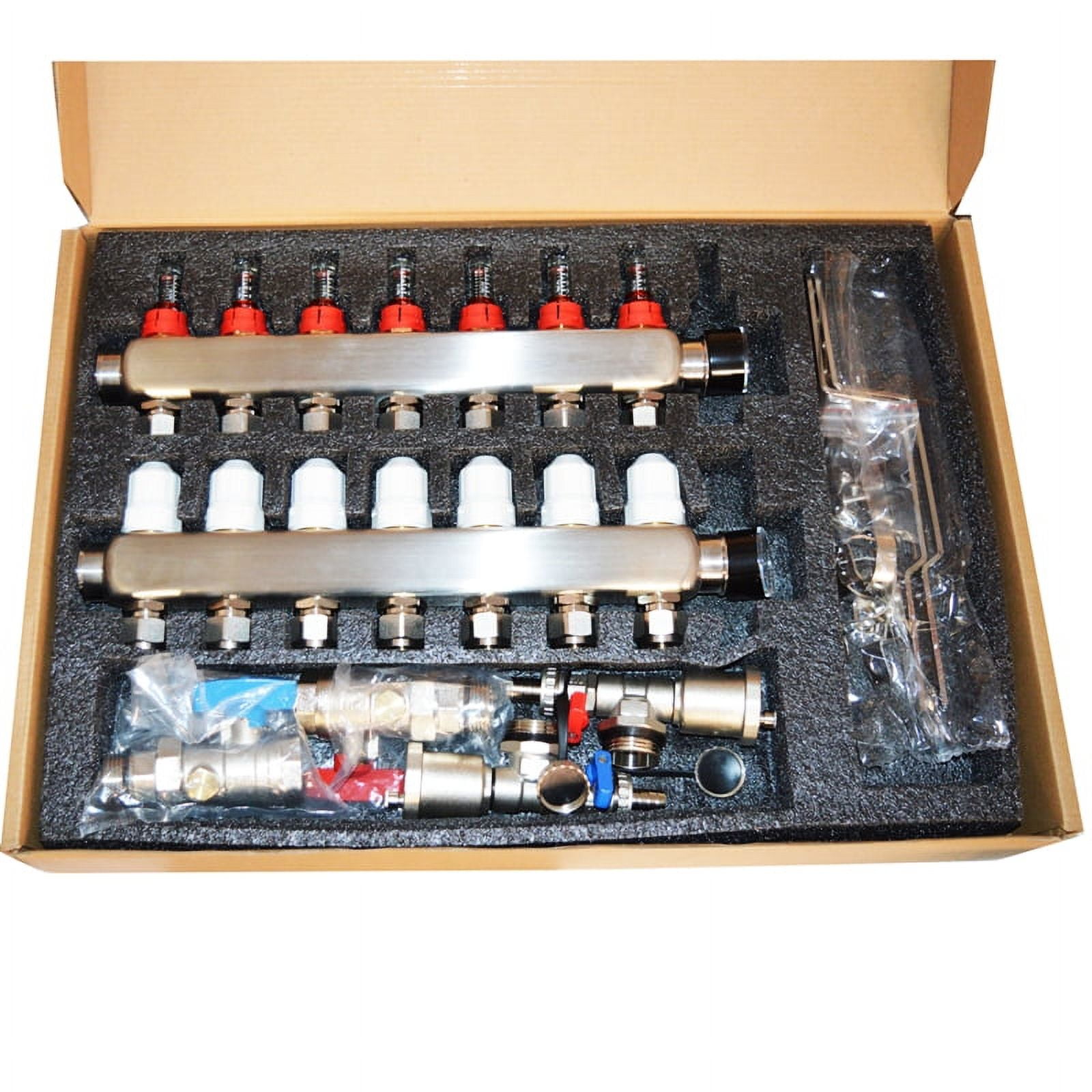

INTRODUCTION: <br>EQCOTWEA 7-Branch PEX Radiant Floor Heating Manifold Set is widely used for heating in homes, schools, hotels, swimming pools and other places. <br>In the floor heating system, the mainfold is mainly responsible for the opening and closing of the water flow in the floor heating loop. When the heated water flows into the mainfold through the main pipeline, the water is evenly distributed to the loop, and after heat exchange, the water is returned to the water outlet. into the heating system. <br> <br>PARAMETERS: <br>Branch number: Seven <br>Material: Main 304 stainless steel(chromium＞18% nickel＞8%)copper:59 brass <br>Main connection thread at both ends: G 1" pipe thread Branch pipe adapter: G 1/2" <br>Inner diameter of applicable floor heating pipe: 0.47"(12mm) <br>Spacing of branch pipes: 1.97"(50mm) <br>Stainless steel tube body thickness: 0.06"(1.6mm) <br>Temperature control trip: 0.12"(3mm) <br>Applicable temperature: 1℃-95℃ <br>Applicable pressure: ≤1.5MPa <br>Applicable medium: Water <br>Overall Width: 20.7" <br>Package size: 24.4"*16.9"*4.3"(62cm*43cm*11cm) <br>Net weight: 13.7Lb(6.2kg) <br>Gross weight:16.7LB(7.6kg) <br> <br>ITEMS INCLUDED: 053266 <br>EQCOTWEA 7-Branch PEX Radiant Floor Heating Manifold Set Floor Heating Water Distributor Stainless Steel

• No matter how the pressure difference of the system changes, the flow of each floor heating branch finally runs stably according to the heat load. Before leaving the factory, each set will be put in water for sealing test to ensure normal and safe use.
• Backwater branches are equipped with independently adjusted temperature control valves, which can control the backwater of branches separately to adjust the temperature.
• Equipped with two brackets, reserved mounting holes, convenient to install the water distributor to the wall or box.
• The tube body has been degaussed, which does not absorb any impurities, effectively reduces friction and prevents scaling, and prolongs service life.
• Stainless steel surface after drawing and polishing treatment, beautiful and generous, smooth and easy to clean.
