CyberPower PDU83104 3 Phase 200 240 VAC 30A Switched Metered-by-Outlet

<div class="product_header">General Information</div><table class="product_table"><tbody><tr><td class="product_attribute_value" colspan="2"><p>Streamline capacity planning and power management with the CyberPower PDU83104 switched metered-by-outlet 3-Phase PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling, and more. </p><p>The PDU83104 supports inputs between 200-240V and includes 30 IEC-320 outlets. Other features include ultra-low power consumption, multi-color outlet LEDs, an interactive digital display with selectable background color, high operating temperature range, built-in web interface, and power event notifications. The CyberPower PDU83104 is protected by a three-year limited warranty. </p><p>More from the Manufacturer</p></td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Technical Information</div><table class="product_table"><tbody><tr><td class="product_attribute">PDU Type:</td><td class="product_attribute_value">Switched with Metered-by-Outlet</td></tr><tr><td class="product_attribute">Phase:</td><td class="product_attribute_value">Three Phase</td></tr><tr><td class="product_attribute">Plug/Connector Type:</td><td class="product_attribute_value">NEMA L21-30P</td></tr><tr><td class="product_attribute">Receptacle Type:</td><td class="product_attribute_value">IEC 60320 C13</td></tr><tr><td class="product_attribute">Receptacle Type:</td><td class="product_attribute_value">IEC 60320 C19</td></tr><tr><td class="product_attribute">Receptacle Detail:</td><td class="product_attribute_value">24 x IEC 60320 C13</td></tr><tr><td class="product_attribute">Receptacle Detail:</td><td class="product_attribute_value">6 x IEC 60320 C19</td></tr><tr><td class="product_attribute">Protection Type:</td><td class="product_attribute_value">Overload Protection</td></tr><tr><td class="product_attribute">Locking Receptacles:</td><td class="product_attribute_value">Cord Retention Tray</td></tr><tr><td class="product_attribute">Features:</td><td class="product_attribute_value">LCD Display</td></tr><tr><td class="product_attribute">Features:</td><td class="product_attribute_value">LED Status Indicator</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Power Description</div><table class="product_table"><tbody><tr><td class="product_attribute">Input Voltage:</td><td class="product_attribute_value">230 V AC</td></tr><tr><td class="product_attribute">Input Voltage Range:</td><td class="product_attribute_value">200 V AC - 240 V AC</td></tr><tr><td class="product_attribute">Output Voltage Range:</td><td class="product_attribute_value">200 V AC - 240 V AC</td></tr><tr><td class="product_attribute">Input Current:</td><td class="product_attribute_value">30 A</td></tr><tr><td class="product_attribute">Input Frequency:</td><td class="product_attribute_value">60 Hz</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Management</div><table class="product_table"><tbody><tr><td class="product_attribute">Management:</td><td class="product_attribute_value"><ul><li>IPv4</li><li>TCP/IP</li><li>UDP</li><li>SNMPv1</li><li>HTTP</li><li>NTP</li><li>DNS</li><li>Telnet</li><li>DHCP</li><li>SMTP</li><li>FTP</li><li>IPv6</li><li>SNMPv3</li><li>HTTPs</li><li>SSH</li><li>SSL</li><li>TLS</li><li>LDAP(S)</li><li>RADIUS</li><li>Syslog</li><li>CLI</li><li>Windows AD</li></ul></td></tr><tr><td class="product_attribute">Remote Outlet Switching:</td><td class="product_attribute_value">Yes</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Interfaces/Ports</div><table class="product_table"><tbody><tr><td class="product_attribute">Network (RJ-45):</td><td class="product_attribute_value">Yes</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Physical Characteristics</div><table class="product_table"><tbody><tr><td class="product_attribute">Color Family:</td><td class="product_attribute_value">Black</td></tr><tr><td class="product_attribute">Product Color:</td><td class="product_attribute_value">Black</td></tr><tr><td class="product_attribute">Product Material:</td><td class="product_attribute_value">Metal</td></tr><tr><td class="product_attribute">Mounting Orientation:</td><td class="product_attribute_value">Vertical</td></tr><tr><td class="product_attribute">Mount Type:</td><td class="product_attribute_value">Rack-mountable</td></tr><tr><td class="product_attribute">Rack Height:</td><td class="product_attribute_value">0U</td></tr><tr><td class="product_attribute">Cord Length:</td><td class="product_attribute_value">10 ft</td></tr><tr><td class="product_attribute">Height:</td><td class="product_attribute_value">70.5"</td></tr><tr><td class="product_attribute">Width:</td><td class="product_attribute_value">2.2"</td></tr><tr><td class="product_attribute">Depth:</td><td class="product_attribute_value">2.2"</td></tr><tr><td class="product_attribute">Weight (Approximate):</td><td class="product_attribute_value">17 lb</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Environmental Conditions</div><table class="product_table"><tbody><tr><td class="product_attribute">Minimum Operating Temperature:</td><td class="product_attribute_value">23°F (-5°C)</td></tr><tr><td class="product_attribute">Maximum Operating Temperature:</td><td class="product_attribute_value">140°F (60°C)</td></tr><tr><td class="product_attribute">Minimum Storage Temperature:</td><td class="product_attribute_value">-4°F (-20°C)</td></tr><tr><td class="product_attribute">Maximum Storage Temperature:</td><td class="product_attribute_value">113°F (45°C)</td></tr><tr><td class="product_attribute">Certifications &amp; Standards:</td><td class="product_attribute_value"><ul><li>UL60950-1</li><li>UL62368-1</li><li>FCC Class A</li></ul></td></tr><tr><td class="product_attribute">Country of Origin:</td><td class="product_attribute_value">Philippines</td></tr><tr><td class="product_attribute">Environmentally Friendly:</td><td class="product_attribute_value">Yes</td></tr><tr><td class="product_attribute">Environmental Compliance:</td><td class="product_attribute_value">Restriction of Hazardous Substances (RoHS)</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Warranty</div><table class="product_table"><tbody><tr><td class="product_attribute">Limited Warranty:</td><td class="product_attribute_value">3 Year</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Miscellaneous</div><table class="product_table"><tbody><tr><td class="product_attribute">Additional Information:</td><td class="product_attribute_value"><li>Physical Dimensions - (WxHxD) (cm) : 5.59 x 179.07 x 5.59 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 2.2 x 70.5 x 2.2 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 56 x 1791 x 56 (mm)</li><li>Weight (kg) : 7.71</li><li>Weight (lb) : 17</li><li>Shipping Dimensions - (WxHxD) (cm) : 17.15 x 15.24 x 205.74 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 6.75 x 6.0 x 81.0 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 171.45 x 152.4 x 2057.4 (mm)</li><li>Shipping - Weight (kg) : 11.11</li><li>Shipping - Weight (lb) : 24.5</li><li>Cord Length : 10 ft (3.0 m)</li><li>Derated Input Current : 24 A</li><li>Input Frequency Range : 50 Hz - 60 Hz</li><li>Input Plug Type : NEMA L21-30P</li><li>Maximum Input Current : 30A</li><li>Nominal Input Voltage : 200 - 240 VAC</li><li>Phase : 3 Phase</li><li>Nominal Output Voltage : 200 - 240 VAC</li><li>Outlets - # of Banks : 3</li><li>Outlets - Total : 30</li><li>Outlet Type COMPUTED : 24 - IEC-320 C13</li><li>Overload Protection : 20A X 3</li><li>USB Charge Port : No</li><li>Environmental Sensor : Optional, via RJ45</li><li>Hardware Connection Port : Ethernet (RJ45)</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Tx/Rx</li><li>Modular Expandability (Cascading) : Yes, via RJ45</li><li>Monitoring Level : Input</li><li>Outlet switching : Yes</li><li>Protocols : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD</li><li>Software (Free Download) : PowerPanel® Business</li><li>Upgradeable firmware : Yes</li><li>Adjustable Mounting Brackets : 1 set</li><li>Color : Black</li><li>Cord Retention Tray/Cord Organizers : Yes</li><li>Form Factors Supported : 0U Vertical Rackmount</li><li>Material of Construction : Metal</li><li>Rack Height : 0U</li><li>Operating Elevation : 0 - 11480 ft (0 - 3499 m)</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 23 - 140 °F (-5 - 60 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Temperature : -4 - 113 °F (-20 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL60950-1|UL62368-1|FCC Class A</li><li>Extended Warranty Option : WEXT5YR-PDU1B</li><li>Product Warranty : 3 Year Limited Warranty</li></td></tr></tbody></table>

• IPv4
• TCP/IP
• UDP
• SNMPv1
• HTTP
• NTP
• DNS
• Telnet
• DHCP
• SMTP
• FTP
• IPv6
• SNMPv3
• HTTPs
• SSH
• SSL
• TLS
• LDAP(S)
• RADIUS
• Syslog
• CLI
• Windows AD
• UL60950-1
• UL62368-1
• FCC Class A
• Physical Dimensions - (WxHxD) (cm) : 5.59 x 179.07 x 5.59 (cm)
• Physical Dimensions - (WxHxD) (in) : 2.2 x 70.5 x 2.2 (in)
• Physical Dimensions - (WxHxD) (mm) : 56 x 1791 x 56 (mm)
• Weight (kg) : 7.71
• Weight (lb) : 17
• Shipping Dimensions - (WxHxD) (cm) : 17.15 x 15.24 x 205.74 (cm)
• Shipping - Dimensions (WxHxD, in) : 6.75 x 6.0 x 81.0 (in)
• Shipping - Dimensions (WxHxD, mm) : 171.45 x 152.4 x 2057.4 (mm)
• Shipping - Weight (kg) : 11.11
• Shipping - Weight (lb) : 24.5
• Cord Length : 10 ft (3.0 m)
• Derated Input Current : 24 A
• Input Frequency Range : 50 Hz - 60 Hz

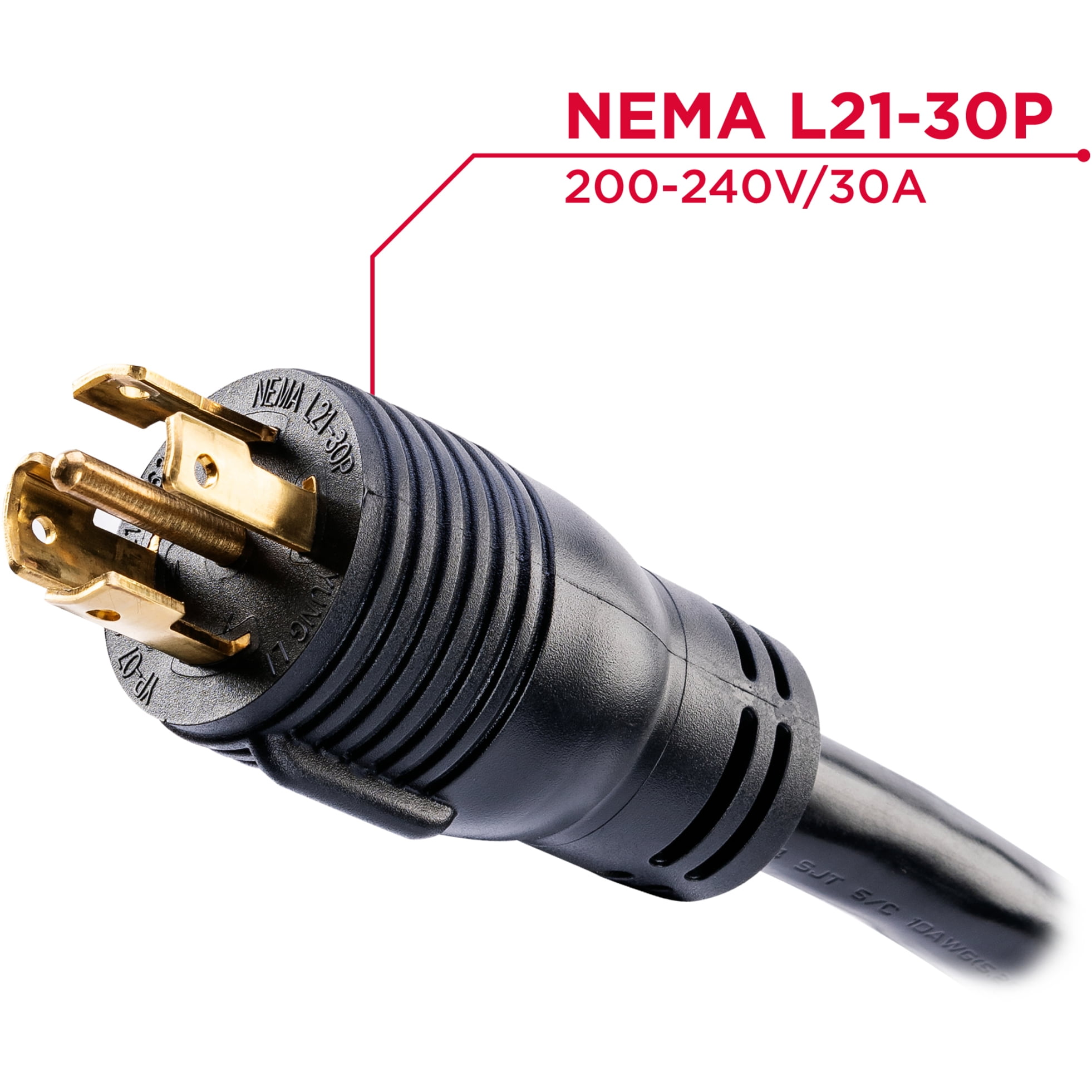

• Input Plug Type : NEMA L21-30P
• Maximum Input Current : 30A
• Nominal Input Voltage : 200 - 240 VAC
• Phase : 3 Phase
• Nominal Output Voltage : 200 - 240 VAC
• Outlets - # of Banks : 3
• Outlets - Total : 30
• Outlet Type COMPUTED : 24 - IEC-320 C13

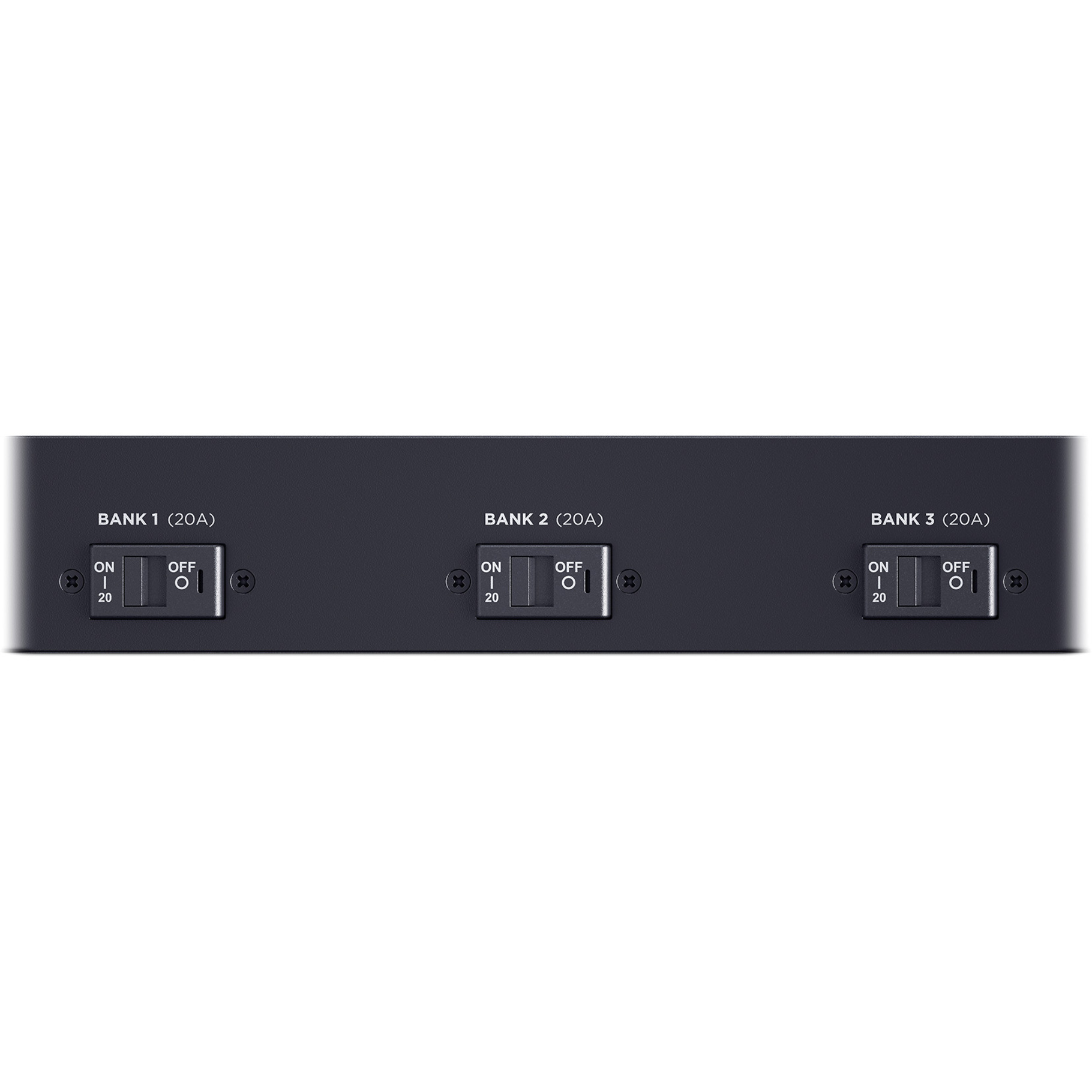

• Overload Protection : 20A X 3
• USB Charge Port : No
• Environmental Sensor : Optional, via RJ45
• Hardware Connection Port : Ethernet (RJ45)

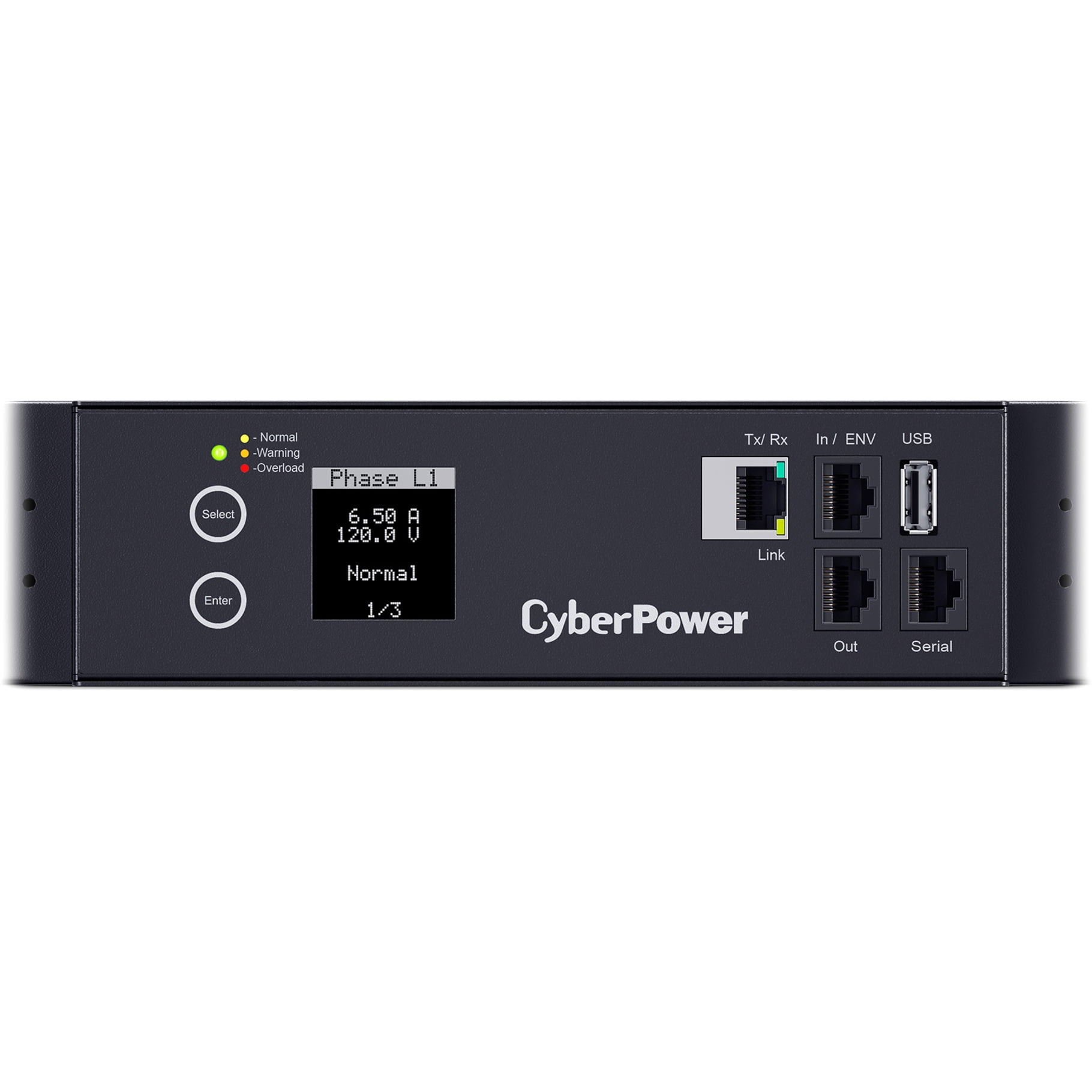

• LCD : Multifunction LCD
• LED Indicators : Tx/Rx
• Modular Expandability (Cascading) : Yes, via RJ45
• Monitoring Level : Input
• Outlet switching : Yes
• Protocols : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
• Software (Free Download) : PowerPanel® Business
• Upgradeable firmware : Yes
• Adjustable Mounting Brackets : 1 set
• Color : Black
• Cord Retention Tray/Cord Organizers : Yes
• Form Factors Supported : 0U Vertical Rackmount
• Material of Construction : Metal
• Rack Height : 0U
• Operating Elevation : 0 - 11480 ft (0 - 3499 m)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Temperature : 23 - 140 °F (-5 - 60 °C)
• Storage Elevation : 0 - 50000 ft (0 - 15239 m)
• Storage Temperature : -4 - 113 °F (-20 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL60950-1|UL62368-1|FCC Class A
• Extended Warranty Option : WEXT5YR-PDU1B
• Product Warranty : 3 Year Limited Warranty
• Monitoring Level: Metered-by-Outlet
• Phase: 3-Phase
• Notifications: Email, SMS Text, and SNMP Trap
• SKU : 0649532622191
• Condition : NEW
• MPN : PDU83104
• BRAND : Cyberpower
