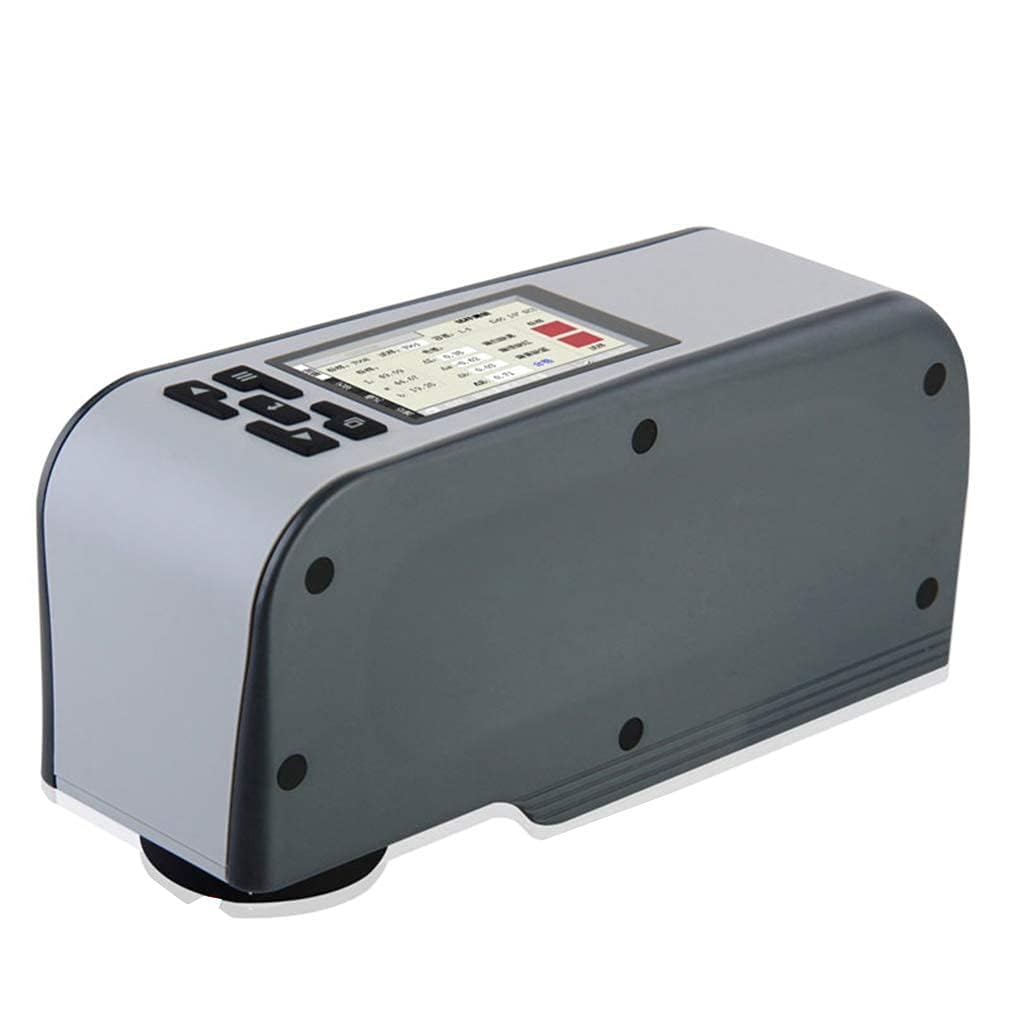

WF32 Color Meter 8mm Caliber Accurate Colorimeter Test Eight Light Source Eight Color Difference Formula

Technical Specifications ❤❤Model: WF32 (8mm) ❤❤Display Mode: CIELAB.CIELCH.CIEXYZ.CIELUV.HunterLAB.sRGB ❤❤Color Difference Formula: △E*ab、△ECMC、△EISO、△ECIE94、△EFCMⅡ、△ELuv、△Ehunter、△EsRGB ❤❤Yellowness and Whiteness: Ganci whiteness. ISO brightness. YI yellowness ❤❤Illumination Condition: CIE Recommendation:8/d ❤❤Light Source: LED blue excitation ❤❤Sensor: Photodiode array ❤❤Measurement Caliber: φ8mm ❤❤Measurement Condition: Observer:CIE 10°Standard observer, Light source:A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30) , Contain light way:SCI SCE ❤❤Measurement Range: L: 0 to 100 ❤❤Repeated Accuracy: E<0.03 (take the deviation average after 30 times measuring the whiteboard) ❤❤Table Difference: E<0.2 ❤❤Measurement Interval: 0.5 Sec. ❤❤Average Measuring Function: Average measuring frequency: 1-32 times ❤❤Color Simulation Function: yes ❤❤Storage Capacity:Type sample data : 100 with testing sample data:20000, Whiteness/yellowness data: 200 ❤❤Quality Control Software: (Color-Analysis System) software ❤❤Battery: Li-ion battery, 5000 times Measurement ❤❤Lifetime of Bulb: 5 years more than 1.6 million measurements ❤❤Display Screen: TFT true color 2.8inch(16:9) Resolution ratio:400x240 ❤❤Interface of External: USB2.0 (USB-B)- data communication with (color analysis system)software RS-232 (115200bps)- connected with micro printer ❤❤Weight: 700g; Size: 199*68*90mm ❤❤Standard Accessories: Standard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CD(Color analysis software)/User manual/Warranty card ❤❤Optional Accessories: Flour measuring device/Liquid measuring device/Micro printer

• ❤❤(1)WF32 colorimeter can be whiteness and yellowness measurements and average measurements, with large-capacity data storage space.
• ❤❤(2)8mm caliber version provides great convenience and trust worthy reliability for all industry to discuss the color technology, because of its versatility, its tiny table difference, and stability.
• ❤❤(3)Caliber 8mm version is a general-purpose color difference meter, mostly used on flat surface considering the general method for detecting color, all walks of life habit, and the measuring caliber requirements of various materials.
• ❤❤(4)It can be used with standard "color analysis system" software.
• ❤❤(5)WF32 has 1) eight kinds of measuring light source (A, D50, D65, C, F2, F7, F11 and F12); 2) six kinds of color modes (CIE1976LAB, CIEXYZ, CIELUV, HunterLAB, sRGB, white yellowness). 3) eight kinds of color difference formula (△ E * ab, △ ECMC, △ EISO, △ ECIE94, △ EFCM Ⅱ, △ ELuv, △ Ehunter, △ EsRGB).
