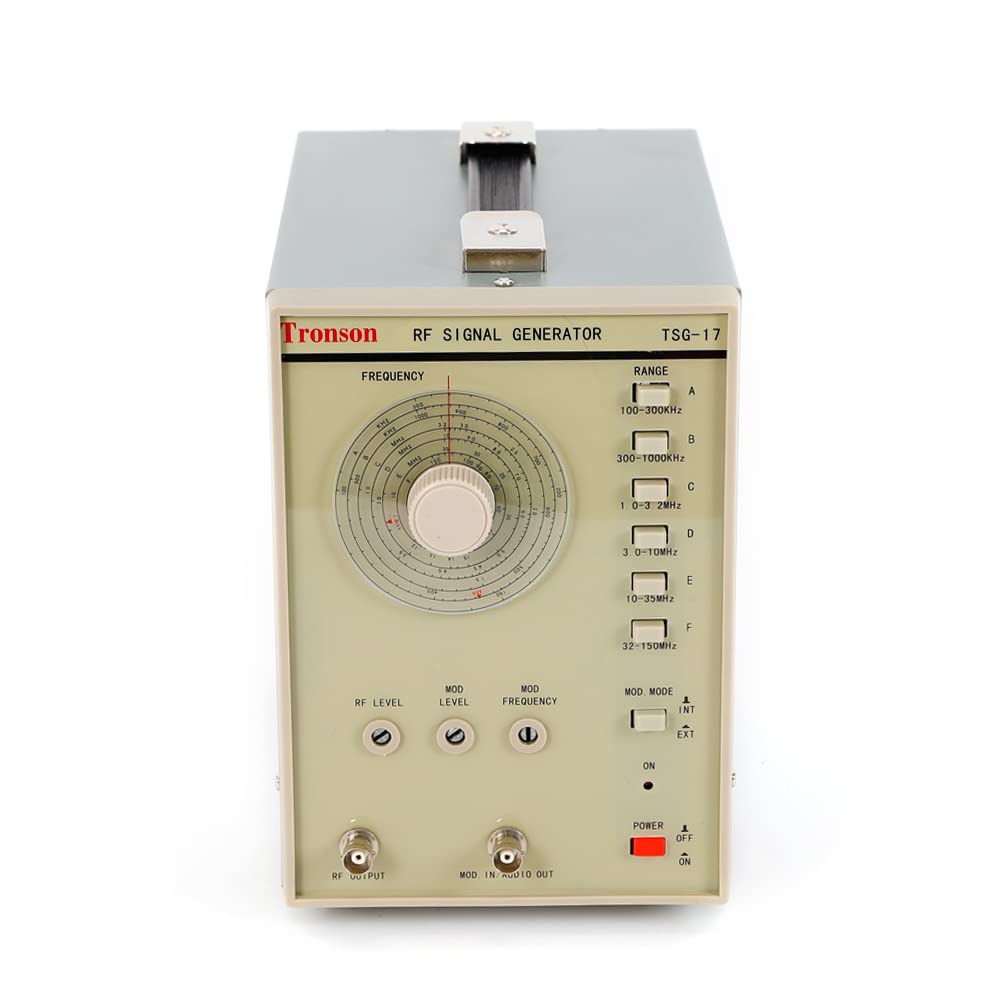

Signal Generator, TSG-17 110V Radio Frequency Signal Generator 100kHz-150MHZ High Frequency RF/AM Radio Frequency with Power Cord for Commercial Household
Product details
| Management number | 220424339 | Release Date | 2026/05/03 | List Price | US$19.20 | Model Number | 220424339 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SpecificationsFrequency Ranges:A: 100 KHz to 300 KHzB: 300 KHz to 1MHzC: 1MHz to 3.2MHzD: 3MHz to 10MHzE: 10MHz to 35MHzF: 32MHz to 150MHzFrequency range: 100 KHz to 150MHz (3 harmonic wave up to 450MHz)Frequency accuracy: Over±10% Output waveform: RF/AM signal waveformOutput impedance: 600ΩRadio frequency output: Over 100Mv rms (when frequency ≤ 35MHz)Level control: 1mV to100mVExternal modulation: 150Hz to 1.5 KHz. Amplitude from 0 to 30% adjustable.Norml operation: 50Hz to 20 KHz for any setting.Temperature/Humidity: 10 oC to 35 oC/with 85%RHPower supply: 110V+/-10%, 50Hz/60HzDimensions: 239*140*200mmWeight: about 2.5kgPackage Included1x 110V Signal Generator1x Power Cord1x Clip cable1x Instruction manual
- Signal Frequency : 100 kHz to 150MHz, 3 harmonic up to 450MHz
- Output Wave Form : sine and amplitude modulation wave
- RF/AM Output：Min 100mv rms(up to 35Mhz unloaded.)
- Complete technologies of Japanese electrical equipment and assembly with imported components ensure minimum accuracy deviation
- External modulation signal can be set between 50Hz to 20 KHz
| Manufacturer | QUSKLISU |
|---|
